ChipKIT WF32

chipKIT WF32
Specifications
Controller	PIC32MX695F512L
Flash	512kB
RAM	32kB
Speed	80MHz
Information
Board Define	_BOARD_WF32_
Links
Designer	Digilent Inc.
Product Page	digilentinc.com
User Guide	chipkit_wf32_rm.pdf
Schematic	WF32(Rev. B)
Tech Support	chipkit.net/forum
Board Files	Eagle (ZIP)
Bootloader HEX	Bootloader Image (ZIP)
Purchase From	Microchip

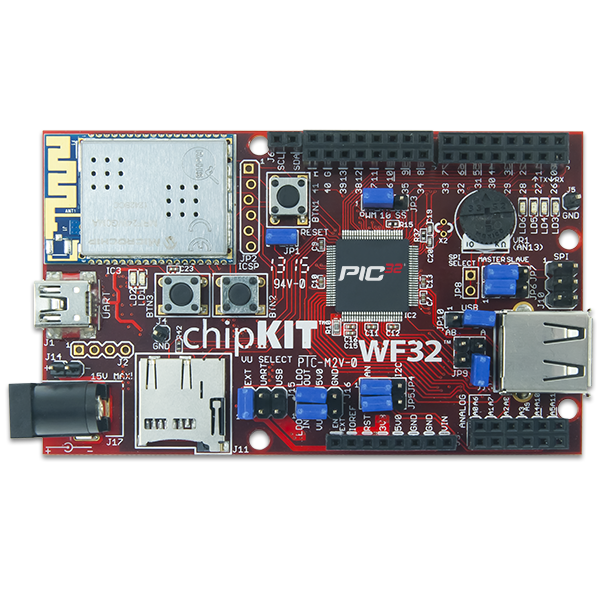

chipKIT™ WF32 by Digilent is an easy-to-use platform for developing WiFi applications. As with other chipKIT boards, it uses chipKIT-core™ development environment and Arduino IDE for compatibility with existing code examples, tutorials and resources. It is also compatible with MPLAB® X IDE.

The WF32 includes several peripherals on board, including WiFi radio module, USB OTG (host or device) interface, microSD card slot, buttons, LEDs, potentiometer and lots of extra I/O. A full-featured HTML server application is available by download. This board can be powered by USB or an external power supply.

For a similar more powerful board see chipKIT™ Wi-Fire.

1. The Board Design

   1. Useful Board Pins

      1. LEDs

      2. Buttons

      3. Analog Inputs

      4. Serial Objects

      5. I2C

      6. SPI

   2. Pinout Table

¶The Board Design

• PIC32MX695F512L processor with 512K Flash, 32K RAM
• Up to 80 MHz operating speed
• MRF24WG0MA WiFi module (802.11 b/g)
• Micro SD card connector (bit-banged SPI interface)
• USB 2.0 OTG interface
• 4 user LEDs, 2 buttons, potentiometer
• 43 available I/O lines (5V Tolerant)
• 12 Analog Inputs (Not 5V Tolerant)

¶Useful Board Pins

¶LEDs

¶Buttons

¶Analog Inputs

¶Serial Objects

¶I2C

¶SPI

Note: The SD Card and WiFi Module also use SPI interfaces.

¶Pinout Table

Quick reference: There are four user LEDs (Pin 13, Pin 43, Pin 47, Pin 48). Pins 47 and 48 do not attach to any connector. There are also 12 analog inputs (Pin 14 - Pin 25, A0 - A11). There are also 43 GPIO pins available.
