ChipKIT Pro MX4

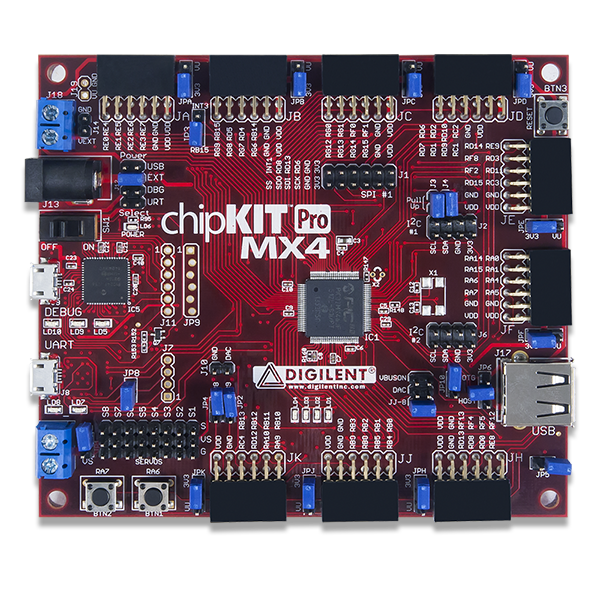

chipKIT Pro MX4
Specifications
Controller	PIC32MX460F512L
Flash	512kB
RAM	32kB
Speed	80 MHz
Information
Board Define	_BOARD_CEREBOT_MX4CK_
Links
Designer	Digilent Inc.
Product Page	digilentinc.com
User Guide	reference.digilentinc.com/_media/chipkit_pro_mx4/chipkit_pro_mx4_rm.pdf
Schematic	chipkit_pro_mx4_sch.pdf
Tech Support	chipkit.net/forum
Board Files	Eagle (ZIP)
Bootloader HEX	Bootloader Image (ZIP)
Purchase From	Microchip

The chipKIT™ Pro MX4 is a microcontroller development board based on the Microchip PIC32MX460F512L, a member of the 32-bit PIC32 microcontroller family. Designed to be easy-to-use, it is suitable for use by anyone from a beginner to an advanced user experimenting with electronics and embedded control systems. Inherently, it is compatible with chipKIT-core™ development environment and Arduino IDE, but since it also has a built-in, on-board Microchip programming/debugging circuit it is compatible with MPLAB® X IDE with no additional hardware required to program or debug.

In addition, the chipKIT Pro MX4 is compatible with Digilent’s line of Pmod™ peripheral modules. chipKIT products and the MPIDE are part of a PIC32-based system compatible with many existing Arduino™ code examples, reference materials, and other resources.

1. The Board Design

   1. Useful Board Pins

      1. LEDs

      2. Buttons

      3. Analog Inputs

      4. Serial Objects

      5. I2C

      6. SPI

   2. Pinout Table

¶The Board Design

• PIC32MX460F512L MCU
• 512K Flash, 32K RAM
• USB 2.0 full speed On-The-Go [OTG]
• 74 I/O pins
• 15 analog inputs
• 8 hobby RC servo connectors
• 9 Pmod connectors for Digilent peripheral module boards
• 2 Push Buttons
• 4 LEDs
• ESD protection and short circuit protection for all I/O pins.

¶Useful Board Pins

¶LEDs

¶Buttons

¶Analog Inputs

¶Serial Objects

¶I2C

¶SPI

¶Pinout Table
