MikroElektronika Flip&Click MZ

Specifications
Controller PIC32MZ2048EFH
Flash 2MB
RAM 512kB
Speed 252MHz
Information
Board Define _BOARD_FLIPNCLICK_MZ_
Links
Designer MikroElektronika
Product Page mikroe.com
User Guide with Schematic flip-n-click-pic32mz-manual-v100.pdf
Tech Support chipkit.net/forumMikroElektronika HelpDesk
ChipKit Bootloader HEX Bootloader Image (HEX)
MikroElektronica Bootloader HEX Bootloader Image (ZIP)
Purchase From MicrochipMikroElektronika

The Flip&Click MZ, which is designed around Microchip's latest MZ architecture, enables rapid prototyping using the Arduino IDE. The PIC32MZ family provides 252MHz performance and 4x the memory over the PIC32MX family. The Flip&Click MZ can also be programmed with the chipKIT PGM Programmer/Debugger.

  1. The Board Design

    1. Useful Board Pins

      1. LEDs

      2. Buttons

      3. Analog Inputs

      4. Serial Objects

      5. I2C

      6. SPI

    2. Pinout Table

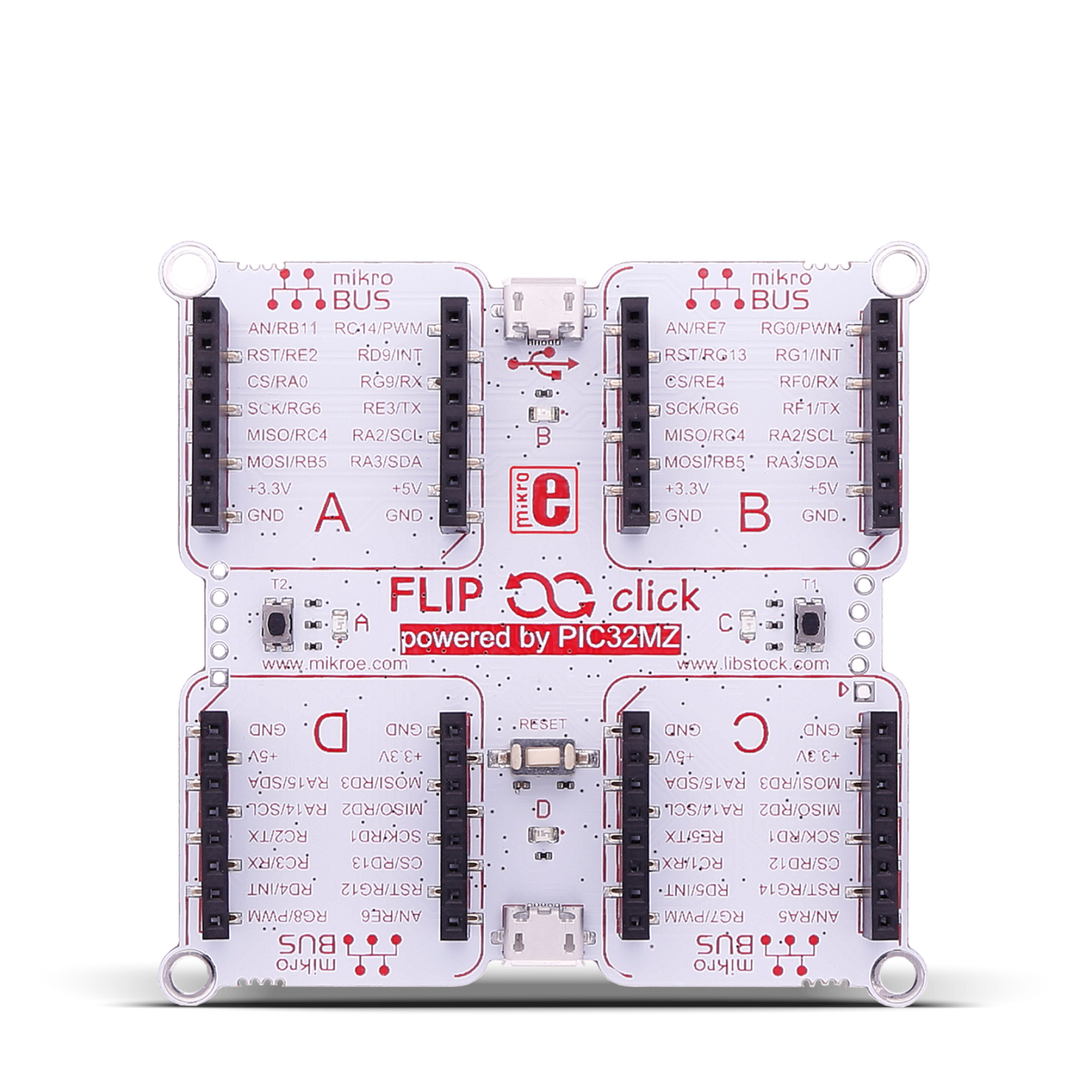

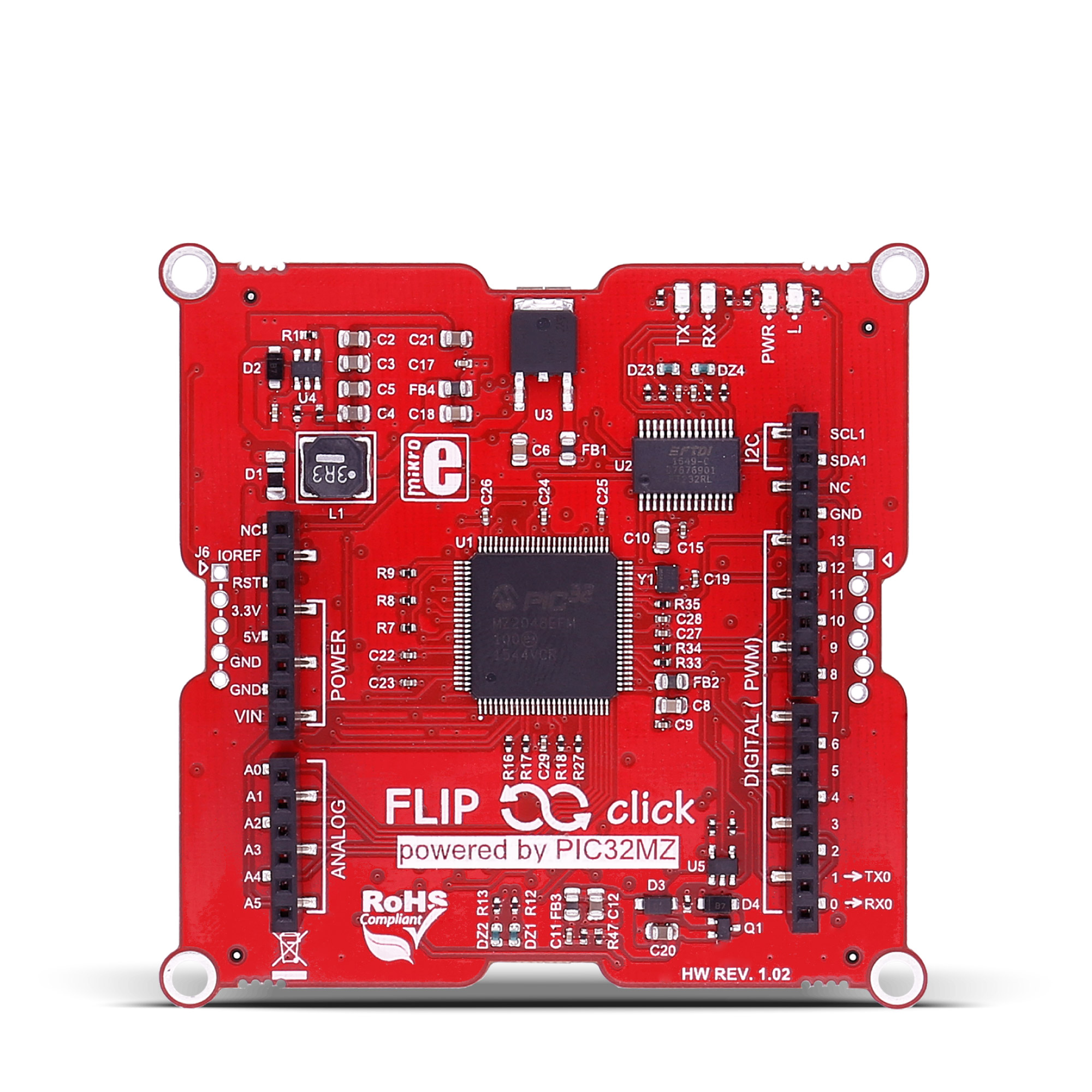

The Board Design

  • Microchip® PIC32 MZ Processor PIC32MZ2048EFH
  • 252MHz operation speed, 2MB of Flash, 512KB RAM
  • 43 available I/O pins with on-board user interfaces
  • 4 Mikrobus-compatible Click sockets, with UART, SPI, I2C, PWM, ADC, and GPIO connections.
  • USB 2.0 Full-Speed / Hi-Speed OTG controller with micro-AB connector
  • 10-bit ADC module: 500 Ksps rate with one Sample and Hold (S&H) circuits, up to 40 analog inputs
  • Six 50 MHz 4-wire SPI, six UART modules, five I2C modules, PPS
  • 4 User LEDs, 2 Push Buttons
  • High efficiency 3.3V switching power supply for low-power operation
  • Fully supported by chipKIT-core and Arduino IDE as well as the MPLAB X IDE

Useful Board Pins

LEDs

LED Name Digital Pin
L (SPI3_SCK) 13
LEDA 22
LEDB 23
LEDC 24
LEDD 25

Buttons

Button Name Digital Pin
T1 46
T2 47

Analog Inputs

Analog Input Digital Pin
A0 14
A1 15
A2 16
A3 17
A4 18
A5 19
A6 26
A7 38
A8 50
A9 62

Serial Objects

Serial Object UART TX Pin RX Pin
Serial USB/UART5 1 0
Serial1 Click A / UART4 35 34
Serial2 Click B / UART3 47 46
Serial3 Click C / UART1 59 58
Serial4 Click D / UART2 71 70

I2C

I2C Object SDA Pin SCL Pin
DTWI0 / Wire 20 21
DTWI1 37 36
DTWI2 61 60

SPI

SPI Object SS1 SS0 MOSI Pin MISO Pin SCK Pin
DSPI0 / SPI SPI3_SS (10) N/A SPI3_MOSI (11) SPI3_MISO (12) SPI3_SCK (13)
SPI Object Click A SS Click B SS MOSI Pin MISO Pin SCK Pin
DSPI1 For Click A and Click B SPI2_SS1 (28) SPI2_SS0 (40) SPI2_MOSI (31) SPI2_MISO (30) SPI2_SCK (29)
SPI Object Click C SS Click D SS MOSI Pin MISO Pin SCK Pin
DSPI2 For Click C and Click D SPI1_SS1 (64) SPI2_SS0 (63) SPI1_MOSI (55) SPI1_MISO (54) SPI1_SCK (53)

Pinout Table

chipKIT Pin # PIC32 Pin # PIC32 Signal Function
0 47 AN32/AETXD0/RPD14/RD14 UART5_RX / Serial / USB (FTDI)
1 48 AN33/AETXD1/RPD15/SCK6/RD15 UART5_TX / Serial / USB (FTDI)
2 71 EMDIO/AEMDIO/RPD0/RTCC/INT0/RD0 2 / INT0
3 39 TDI/EBIA18/AN30/RPF13/SCK5/RF13 3 / OC1
4 58 EBIRDY2/RPF8/SCL3/RF8 4
5 40 TDO/EBIA17/AN31/RPF12/RF12 5 / OC5
6 44 EBIA0/AN10/ERXD3/AETXD2/RPB15/OCFB/PMA0/RB15 6 / OC8
7 72 SOSCI/RPC13/RC13 7
8 56 RPF3/USBID/RF3 8 / OC2
9 57 EBIRDY3/RPF2/SDA3/RF2 9 / OC9
10 32 EBIA10/AN48/RPB8/PMA10/RB8 10 / SPI3_SS
11 34 EBIA13/CVREFOUT/AN5/RPB10/PMA13/RB10 11 / SPI3_MOSI
12 33 EBIA7/AN49/RPB9/PMA7/RB9 12 / SPI_MSIO
13 43 EBIA1/AN9/ERXD2/AETXD3/RPB14/SCK3/PMA1/RB14 13 / SPI3_SCK
14 22 AN3/C2INA/RPB3/RB3 A0
15 23 AN2/C2INB/RPB2/RB2 A1
16 24 PGEC1/AN1/RPB1/RB1 A2
17 25 PGED1/AN0/RPB0/RB0 A3
18 21 AN4/C1INB/RB4 A4
19 1 AN23/AERXERR/RG15 A5
20 60 EBIRDY1/SDA2/RA3 I2C2_SDA
21 59 EBICS0/SCL2/RA2 I2C2_SCL
22 89 TRCLK/SQICLK/RA6 LEDA
23 90 TRD3/SQID3/RA7 LEDB
24 91 EBID0/PMD0/RE0 LEDC
25 94 EBID1/PMD1/RE1 LEDD
26 35 AN6/ERXERR/AETXERR/RB11 AN (Click A)
27 98 EBID2/PMD2/RE2 RST4
28 17 TMS/EBIA16/AN24/RA0 SPI2_SS1
29 10 AN14/C1IND/ECOL/RPG6/SCK2/RG6 SPI2_SCK
30 9 EBIOE/AN19/RPC4/PMRD/RC4 SPI2_MISO
31 20 AN45/C1INA/RPB5/RB5 SPI2_MOSI
32 73 SOSCO/RPC14/T1CK/RC14 OC6
33 68 EBIA15/RPD9/PMCS2/PMA15/RD9 INT4
34 16 EBIA2/AN11/C2INC/ERXCLK/EREFCLK/AERXCLK/AEREFCLK/RPG9/PMA2/RG9 UART4_RX
35 99 EBID3/RPE3/PMD3/RE3 UART4_TX
36 59 EBICS0/SCL2/RA2 I2C2_SC
37 60 EBIRDY1/SDA2/RA3 I2C2_SDA
38 5 EBID7/AN15/PMD7/RE7 AN (Click B)
39 97 TRD0/SQID0/RG13 RST3
40 100 EBID4/AN18/PMD4/RE4 SPI2_SS0
41 10 AN14/C1IND/ECOL/RPG6/SCK2/RG6 SPI2_SCK
42 9 EBIOE/AN19/RPC4/PMRD/RC4 SPI2_MISO
43 20 AN45/C1INA/RPB5/RB5 SPI2_MOSI
44 88 EBID8/RPG0/PMD8/RG0 OC7
45 87 EBID9/ETXERR/RPG1/PMD9/RG1 INT3
46 85 EBID11/ETXD1/RPF0/PMD11/RF0 UART3_RX
47 86 EBID10/ETXD0/RPF1/PMD10/RF1 UART3_TX
48 59 EBICS0/SCL2/RA2 I2C2_SCL
49 60 EBIRDY1/SDA2/RA3 I2C2_SDA
50 2 EBIA5/AN34/PMA5/RA5 AN (Click C)
51 95 TRD2/SQID2/RG14 RST1
52 96 TRD1/SQID1/RG12 RST2
53 76 RPD1/SCK1/RD1 SPI1_SCK
54 77 EBID14/ETXEN/RPD2/PMD14/RD2 SPI1_MISO
55 78 EBID15/ETXCLK/RPD3/PMD15/RD3 SPI1_MOSI
56 15 AN13/C1INC/RPG7/SDA4/RG7 RST
57 82 SQICS1/RPD5/RD5 INT1
58 6 EBIA6/AN22/RPC1/PMA6/RC1 UART1_RX
59 3 EBID5/AN17/RPE5/PMD5/RE5 UART1_TX
60 66 AETXCLK/RPA14/SCL1/RA14 I2C1_SCL
61 67 AETXEN/RPA15/SDA1/RA15 I2C1_SCL
62 4 EBID6/AN16/PMD6/RE6 AN (Click D)
63 96 TRD1/SQID1/RG12 RST2
64 80 EBID13/ETXD3/PMD13/RD13 SPI1_SS1
65 70 RPD1/SCK1/RD1 BTN2
66 77 EBID14/ETXEN/RPD2/PMD14/RD2 SPI1_MISO
67 78 EBID15/ETXCLK/RPD3/PMD15/RD3 SPI1_MOSI
68 12 EBIA3/AN12/C2IND/ERXDV/ECRSDV/AERXDV/AECRSDV/RPG8/SCL4/PMA3/RG8 OC3
69 81 SQICS0/RPD4/RD4 INT1
70 8 EBIWE/AN20/RPC3/PMWR/RC3 UART2_RX
71 7 EBIA12/AN21/RPC2/PMA12/RC2 UART2_TX
73 67 AETXEN/RPA15/SDA1/RA15 I2C1_SDA
74 69 RPD10/SCK4/RD10 BTN1
75 70 EMDC/AEMDC/RPD11/RD11 BTN2
N/A 65 EBIA8/RPF5/SCL5/PMA8/RF5 I2C5_SDA
N/A 66 AETXCLK/RPA14/SCL1/RA14 I2C1_SCL
